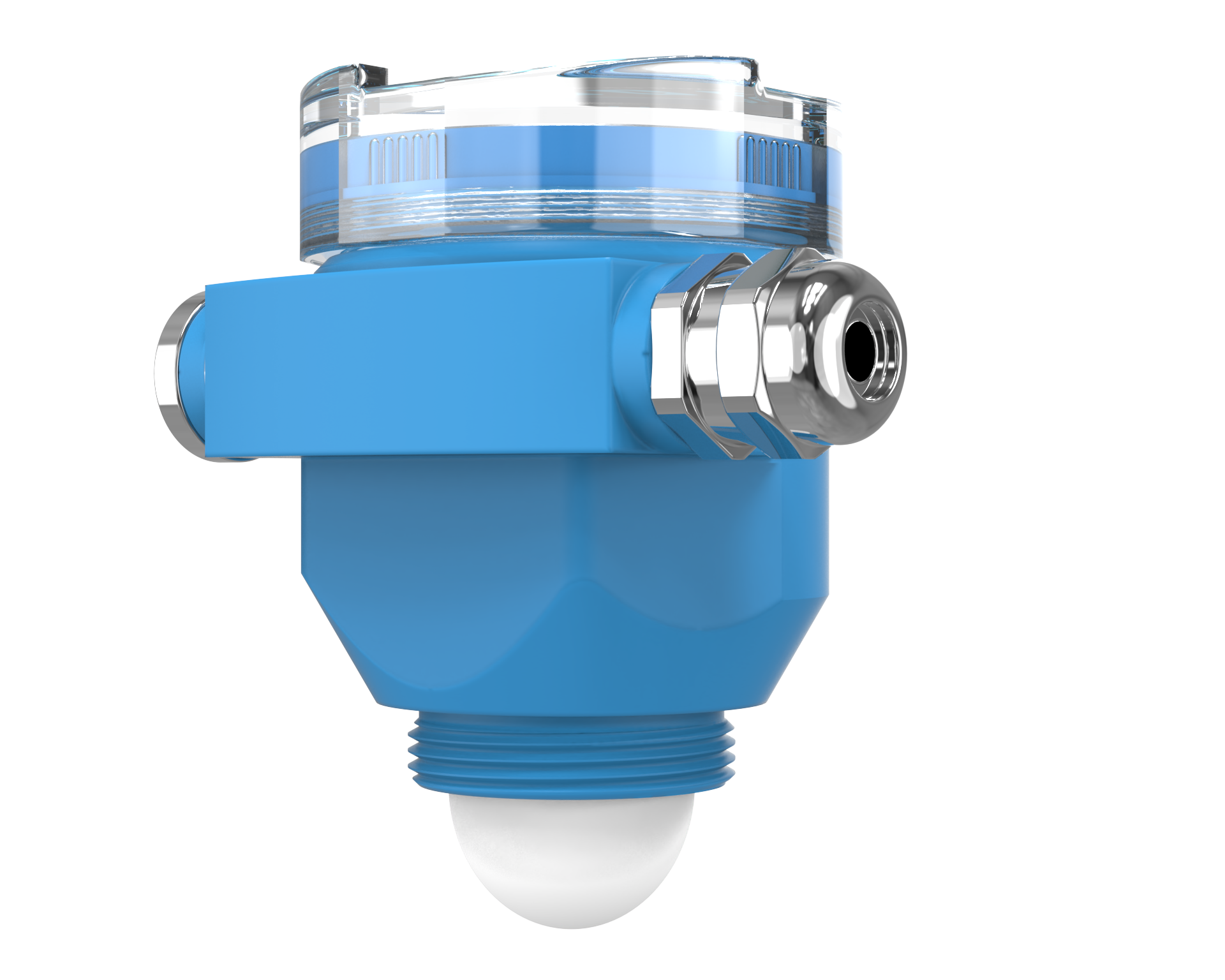

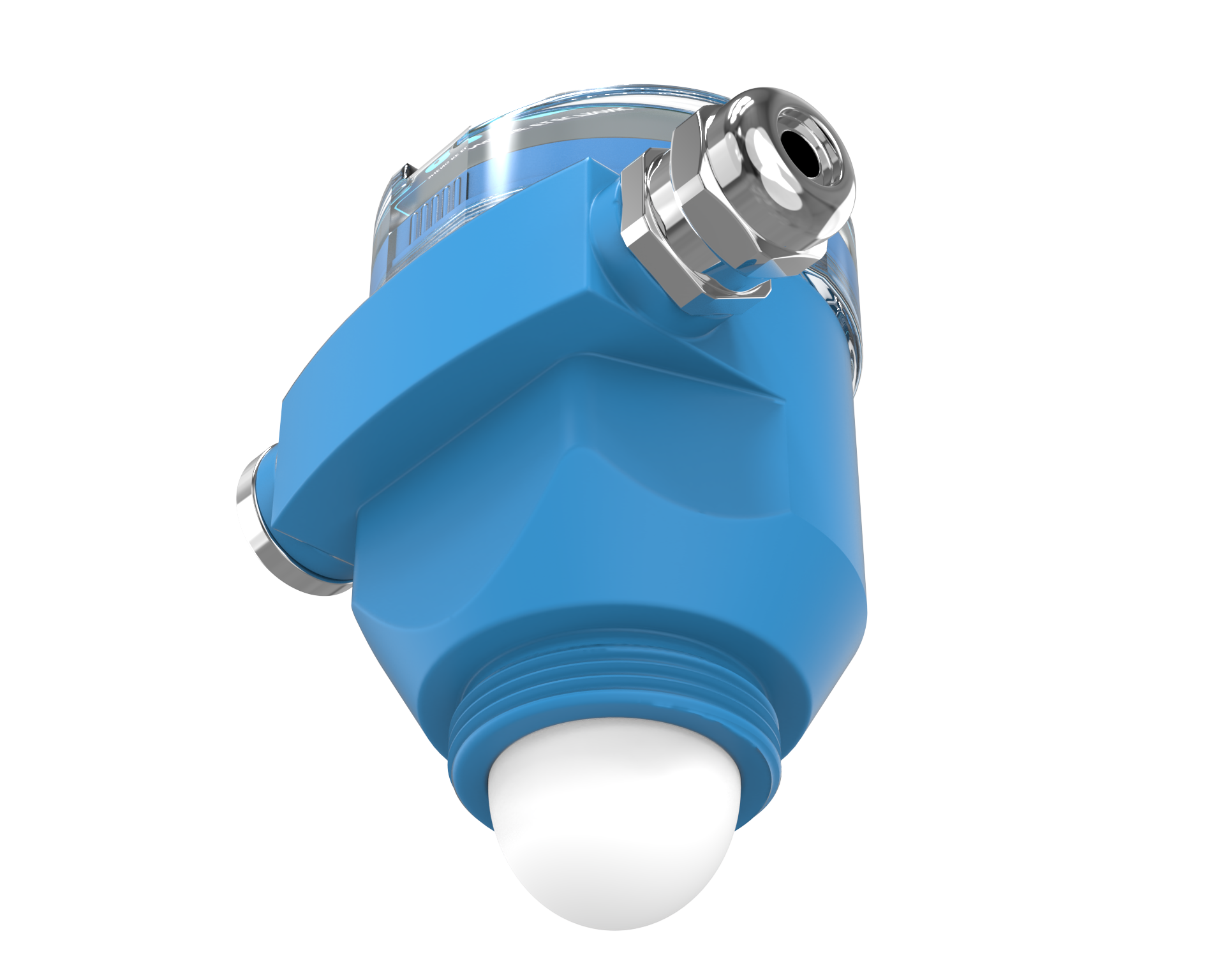

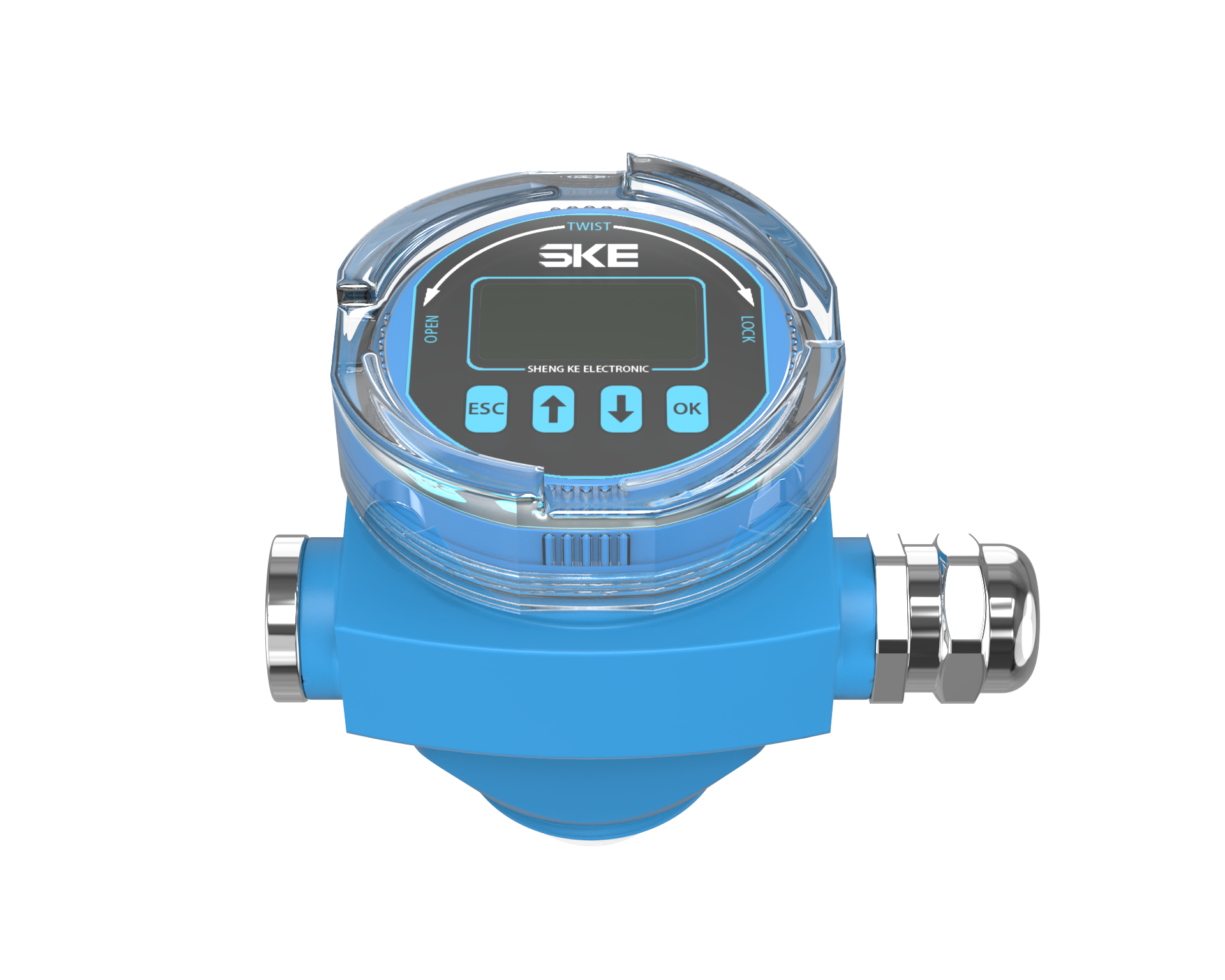

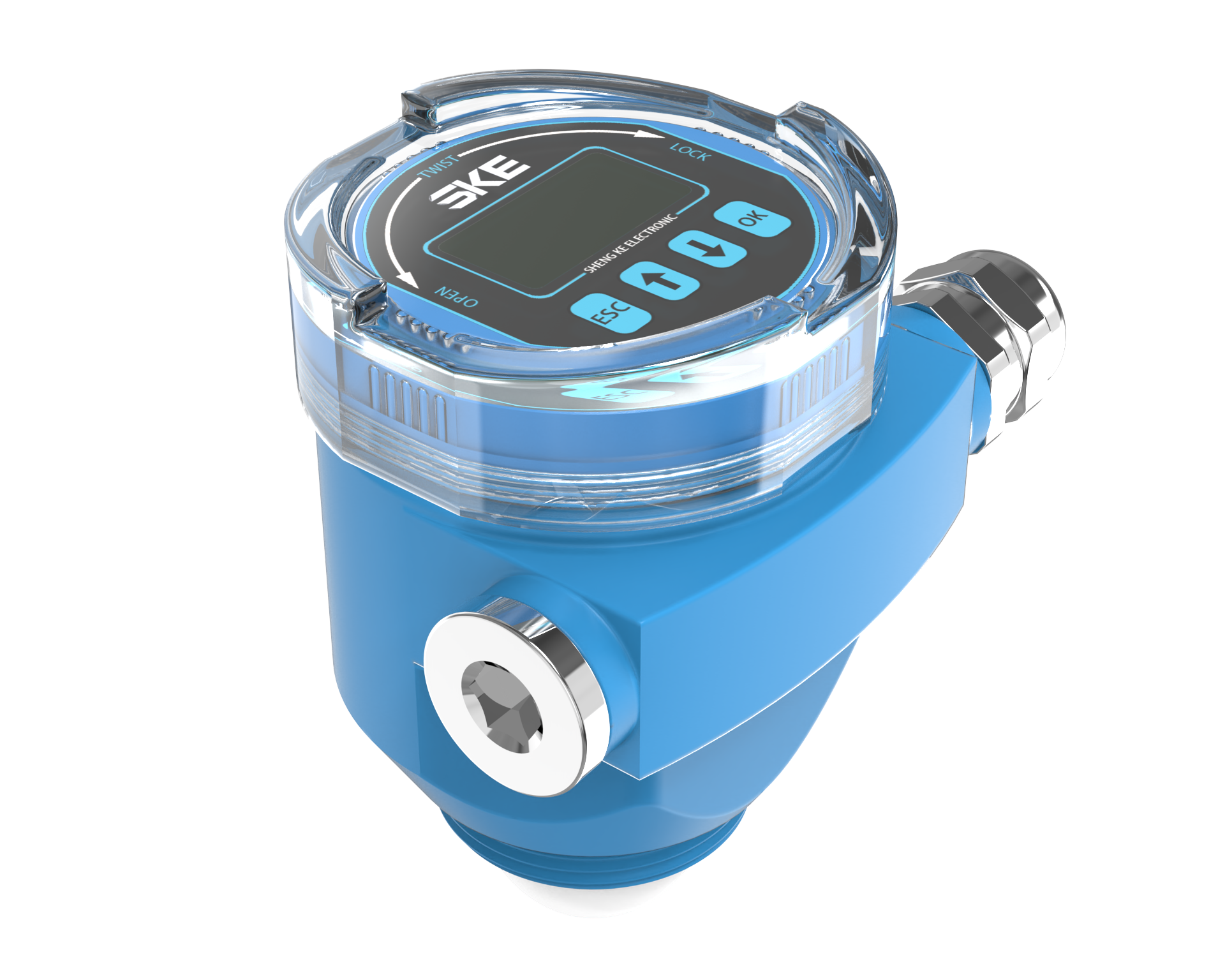

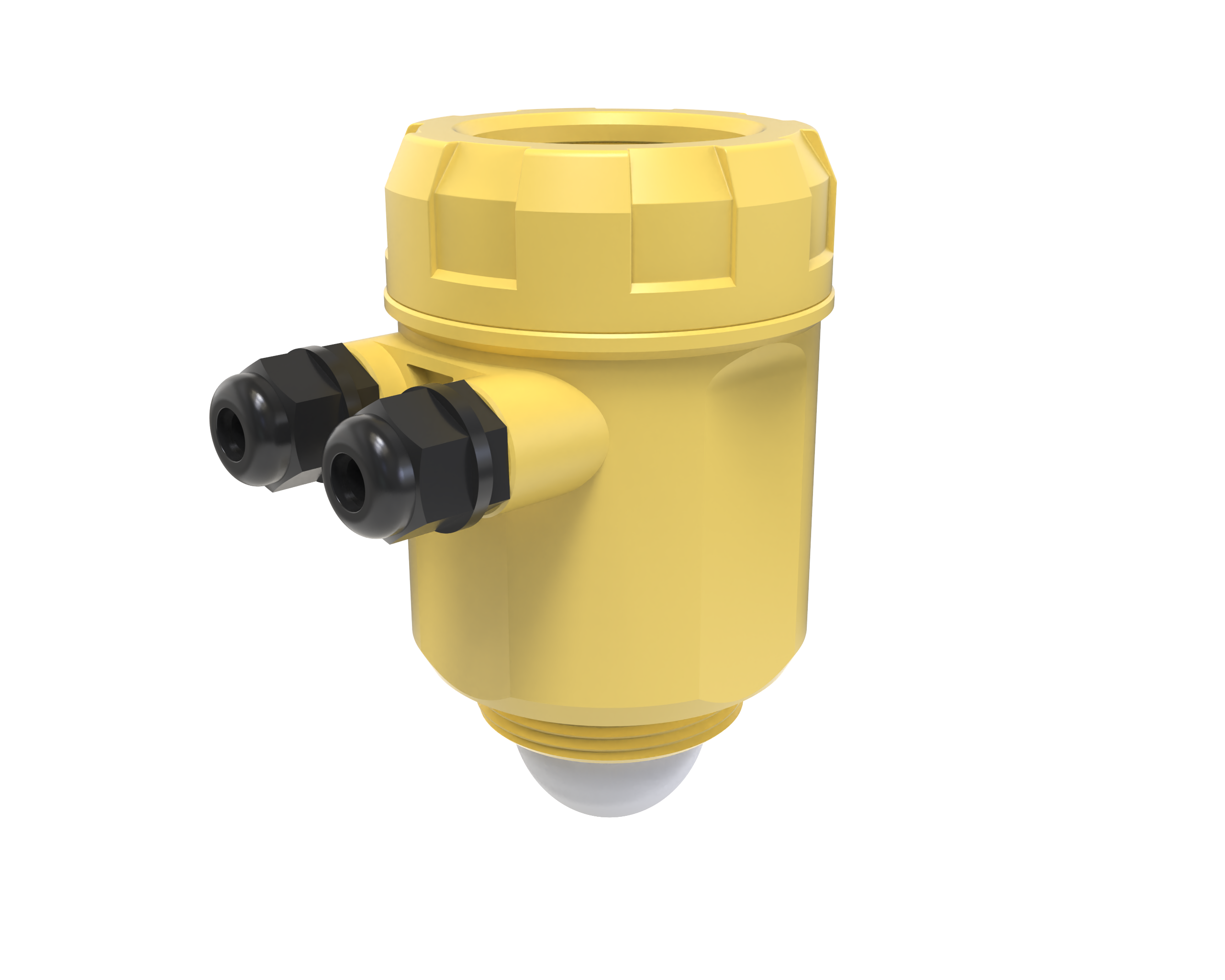

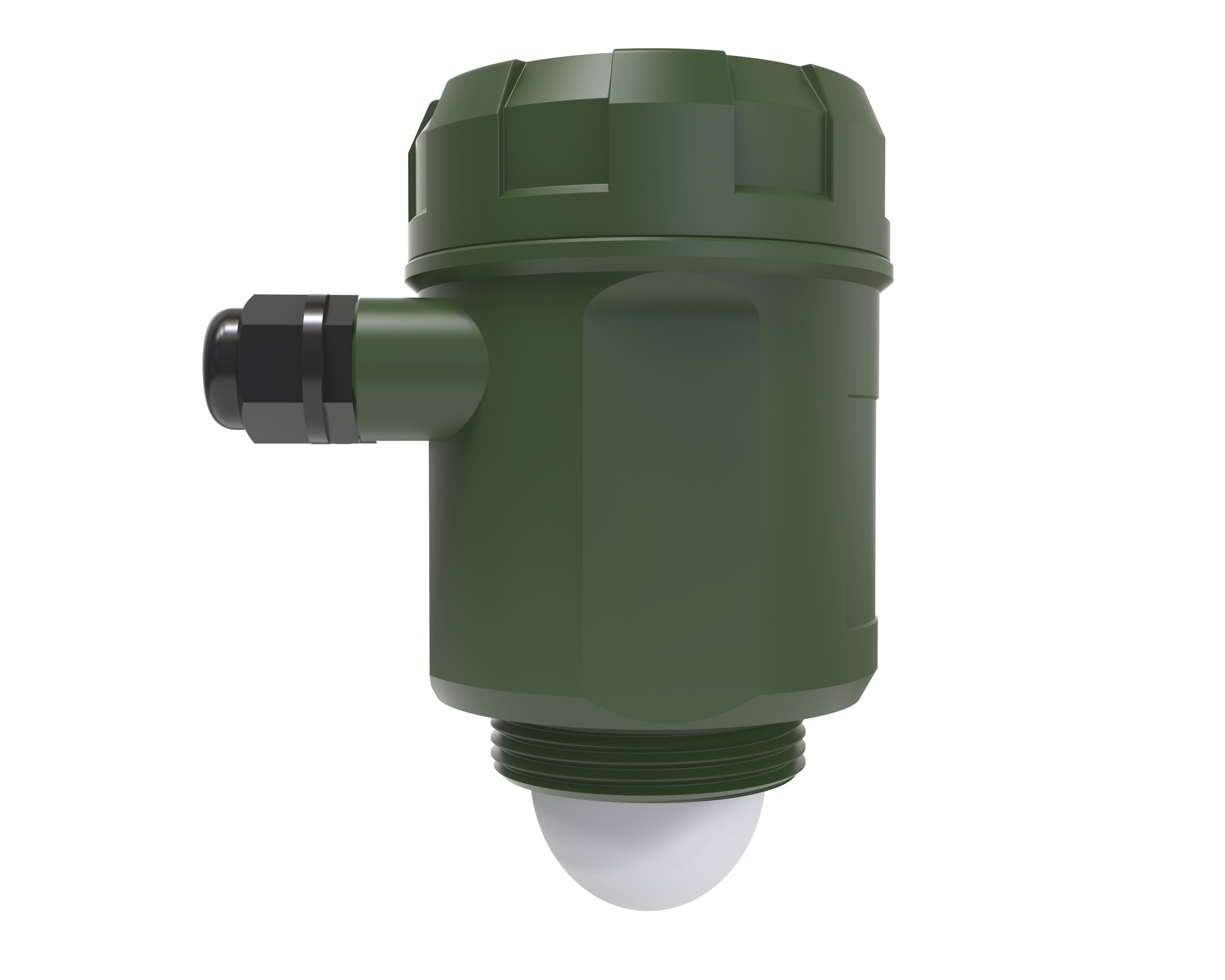

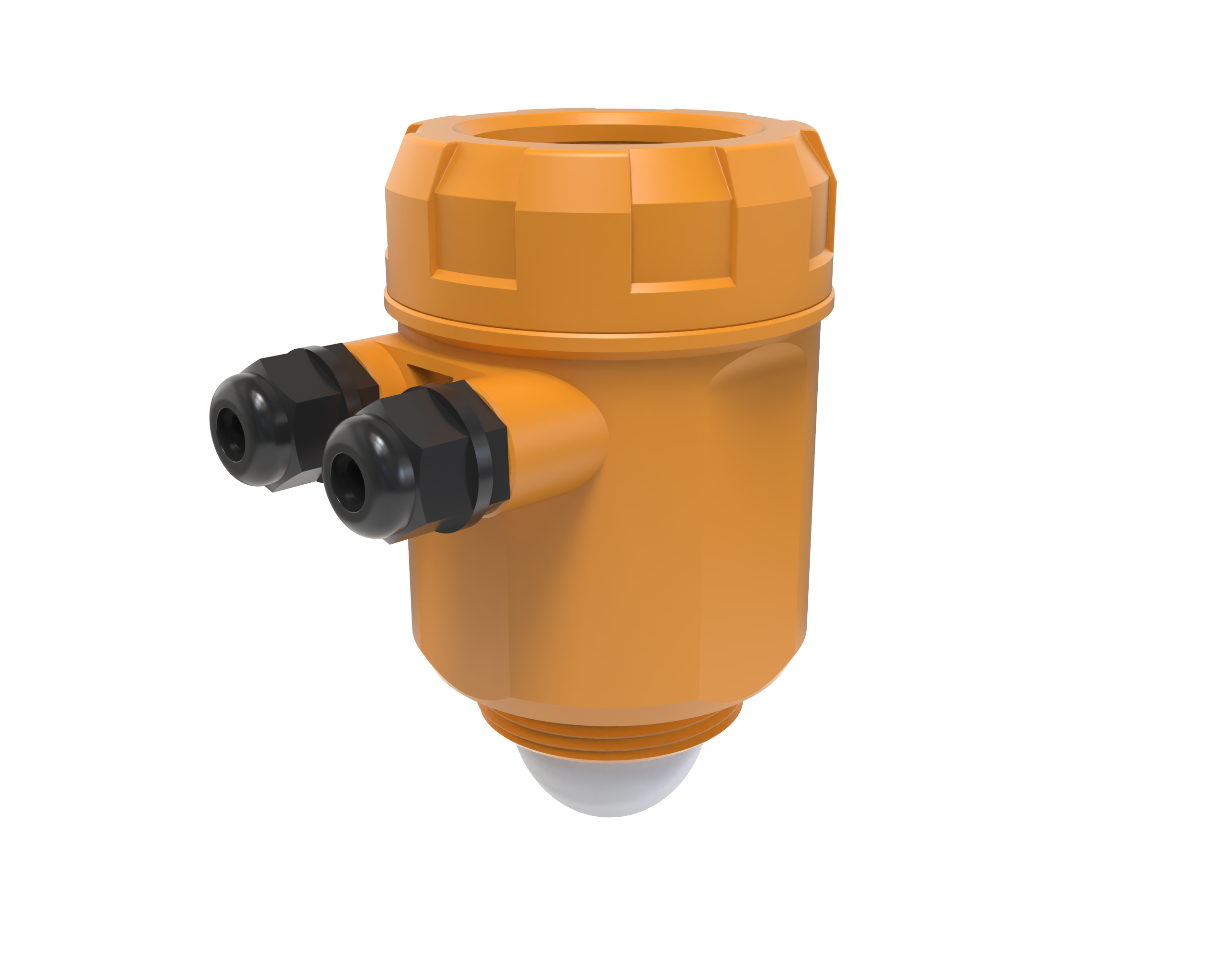

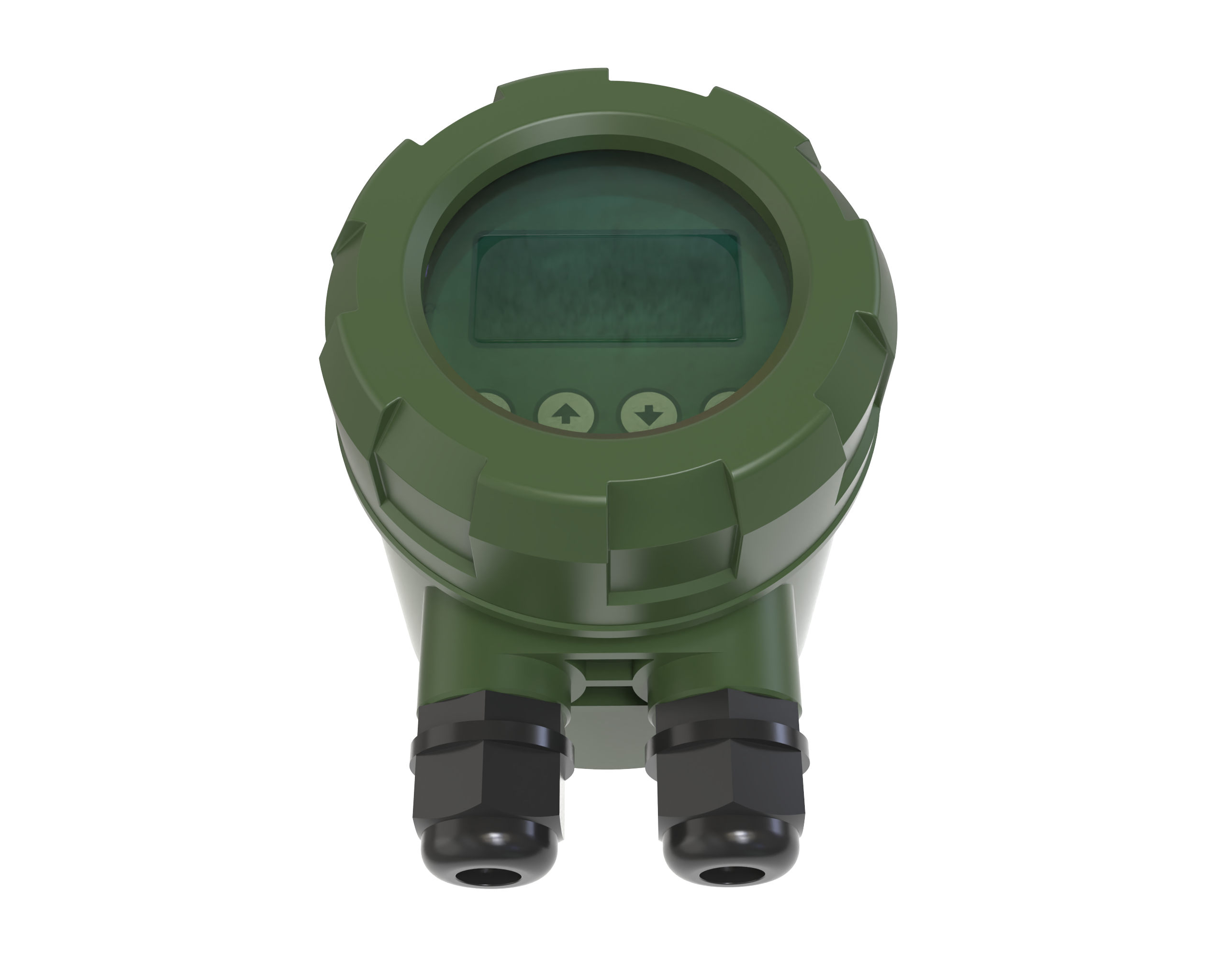

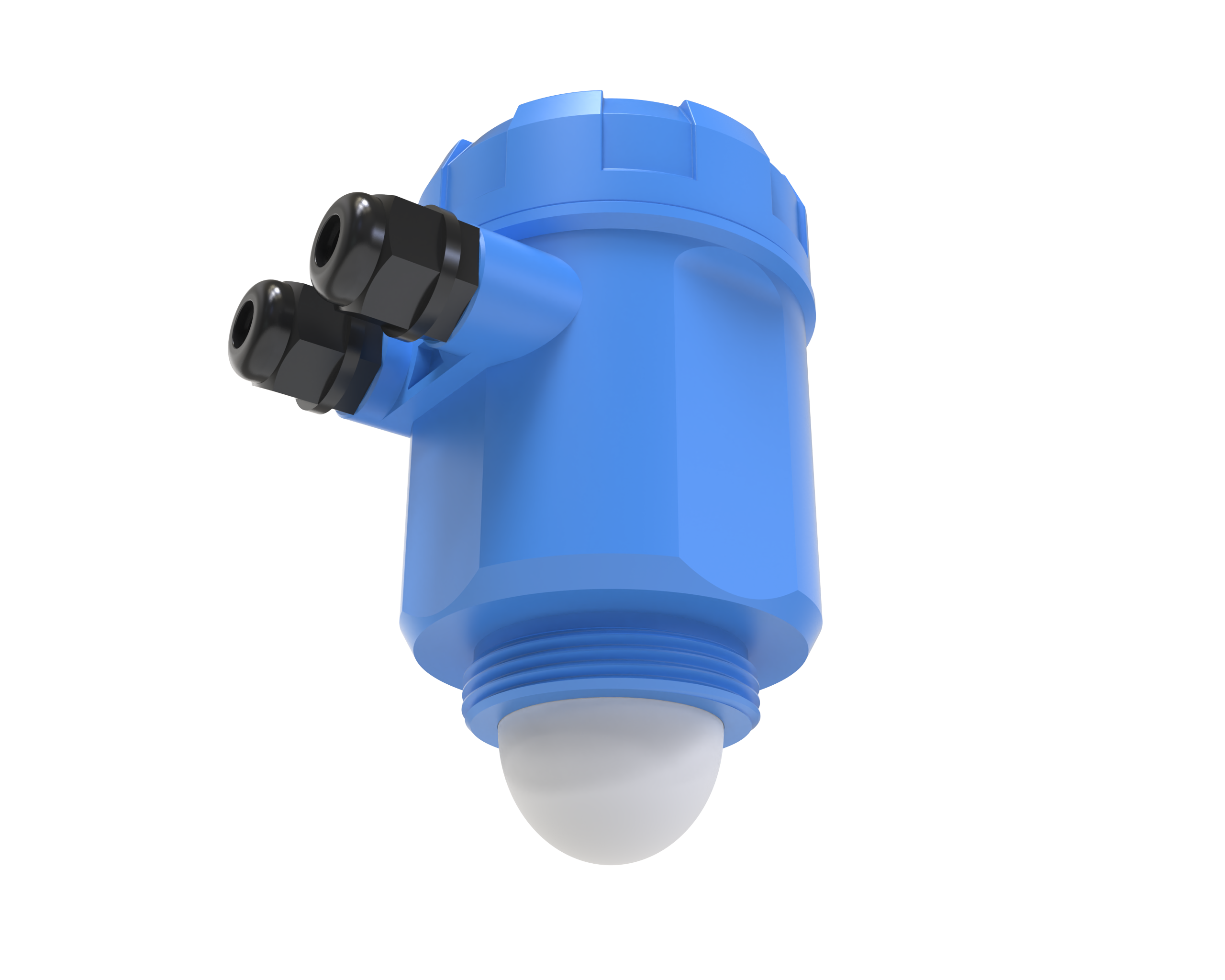

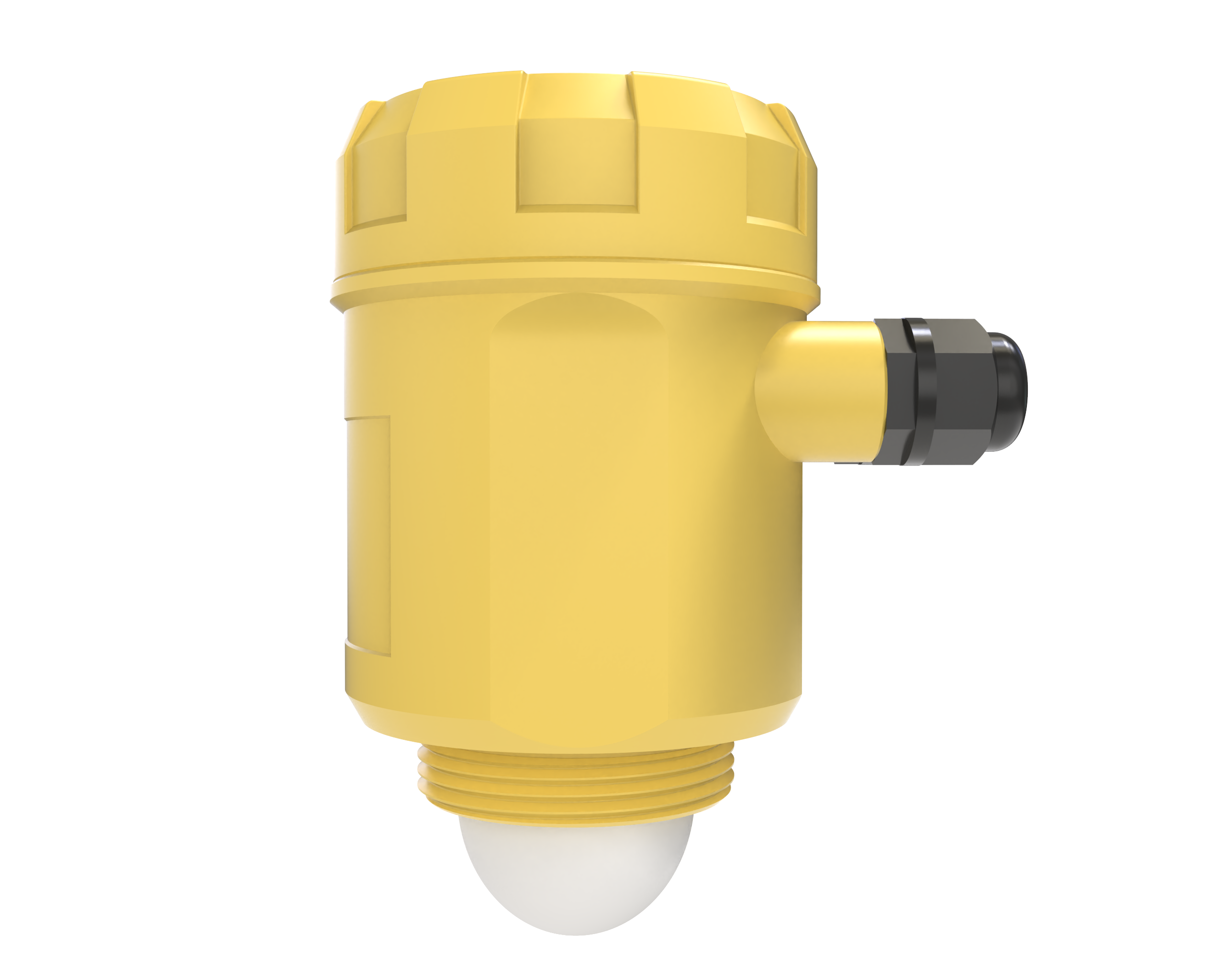

80GHz Radar Level Transmitter (LCD display) for Liquids

A revolutionary product that perfectly replaces top-mounted ultrasonic level sensors
The 80Ghz radar level sensor is an electronic transmitter that uses electromagnetic waves to detect targets. It is suitable for liquid level measurement of various media such as wastewater acids, alkalis and additives in the petrochemical industry. It is a revolutionary product that can perfectly replace top-mounted ultrasonic liquid level gauges. The 80 GHz band radar used in the field of industrial measurement has the characteristics of high precision and non-contact, and has incomparable advantages compared with other ordinary microwave pulse radars and guided wave radars. The extremely narrow beam and penetrating ability are more suitable for ultra-complex operating conditions without compromising measurement performance.
level monitoring wastewater level the level measurement for open channel radar water level sensor 80g radar 80Ghz radar level sensor 80Ghz radar level measurement 80Ghz radar level gauge 80Ghz radar level transmitter open channel level

  • Low cost
    Low cost
    Directly replace ultrasonic liquid level sensor.
  • High measurement accuracy
    High measurement accuracy
    High measurement accuracy, unaffected by temperature, pressure, ambiet, dirt and deposits.
  • Low environmental requirements
    Low environmental requirements
    Insensitive to dirt and buildup, no cleaning or no interference caused by buildup on antenna systems.
  • Easy to install
    Easy to install
    Can be used in tanking equipment with narrow space and built-in parts.
  • Simple setup
    Simple setup
    User-friendly setup, saves time.
  • 80GHz Radar Level Transmitter (LCD display) for Liquids
    Principle

        Frequency modulation continuous wave (FMCW) technology is adopted in the object level sensor of 80GHz radar level transmitter. The continuous wave with frequency variation is transmitted within a certain period, and the echo reflected by the object has a certain frequency difference with the transmitted signal. The distance information between the target and the radar can be obtained by measuring the frequency difference.

        Radar level transmitter, as a new industrial level measuring instrument, has the characteristics of high temperature resistance, high pressure resistance, vacuum resistance, strong penetration, temperature, steam, dust and other effects.


Application area

  • Open channel water level monitoring
    Automatic monitoring of seasonal rivers, not suitable for underwater installations.
  • Flash flood warning
    Monitoring of the tail water level in front of the reservoir dam, under the dam, and the water level of the surge tower (well).
  • Urban waterlogging
    Under the influence of heavy rainfall in urban low-lying terrain areas, the drainage system is overloaded, which can easily cause urban waterlogging and cause immeasurable loss of life and property to citizens. Using radar water level gauge to monitor its water level is an effective means of guarantee.
  • Sewage Disposal
    City water treatment, sewage level monitoring system.
  • Surge well water level monitoring
    Detecting the water level of the surge well of the hydropower station to achieve the purpose of monitoring the fluctuation of the surge well water level.
  • Open channel water level monitoring
    Automatic monitoring of seasonal rivers, not suitable for underwater installations.
  • Flash flood warning
    Monitoring of the tail water level in front of the reservoir dam, under the dam, and the water level of the surge tower (well).
  • Urban waterlogging
    Under the influence of heavy rainfall in urban low-lying terrain areas, the drainage system is overloaded, which can easily cause urban waterlogging and cause immeasurable loss of life and property to citizens. Using radar water level gauge to monitor its water level is an effective means of guarantee.
  • Sewage Disposal
    City water treatment, sewage level monitoring system.
  • Surge well water level monitoring
    Detecting the water level of the surge well of the hydropower station to achieve the purpose of monitoring the fluctuation of the surge well water level.

Technical parameters

  • Power supply
    DC 24V ( 22V~30V )
  • Measuring range/Distance
    5m、10m、15m、20m、30m
  • Accuracy
    ±2mm
  • Signal output
    4~20mA/Hart/RS485/Bluetooth
  • Protection
    IP67
  • Display
    128*64LCD & mobile APP, WeChat applet
  • Weight
    0.75kg

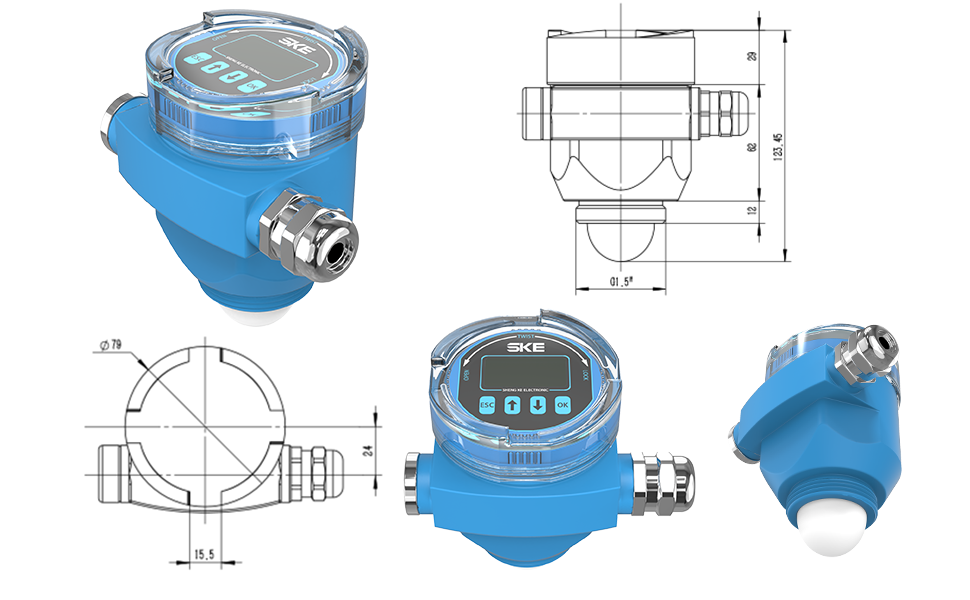

  • Sizes
    ϕ85.5mm×130mm
  • Frequency
    77GHz-81GHz
  • Beam angle
    ±5°
  • Material
    ABS+PP
  • Process connection
    Thread and flange (customized)
  • Process Temperature
    -20°C to 60°C (-20 to +140°F)
  • Process Pressure
    Normal atmospheric pressure
