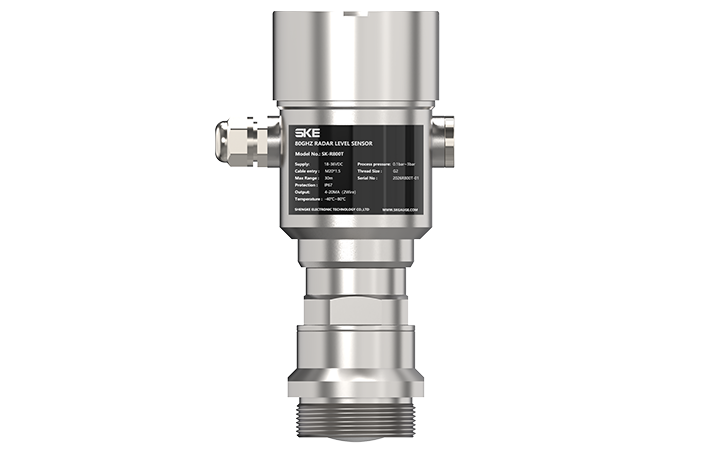

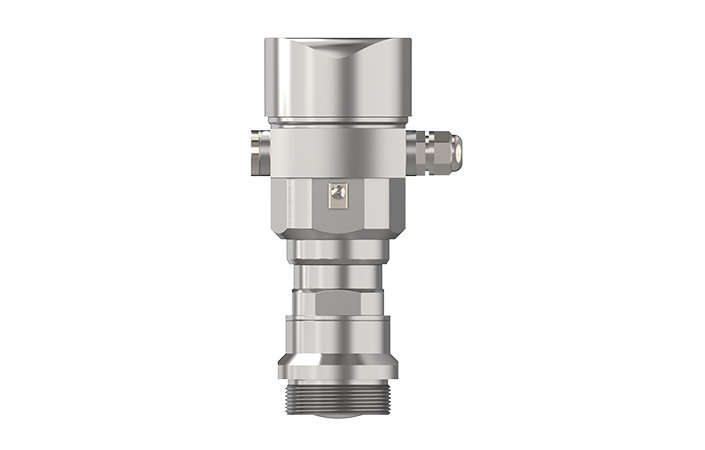

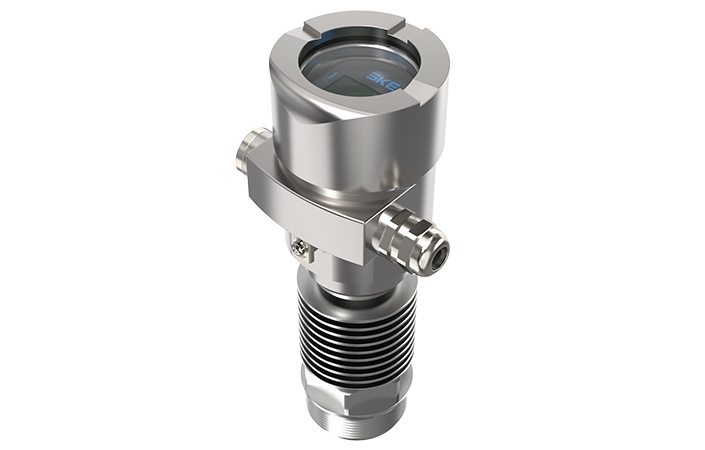

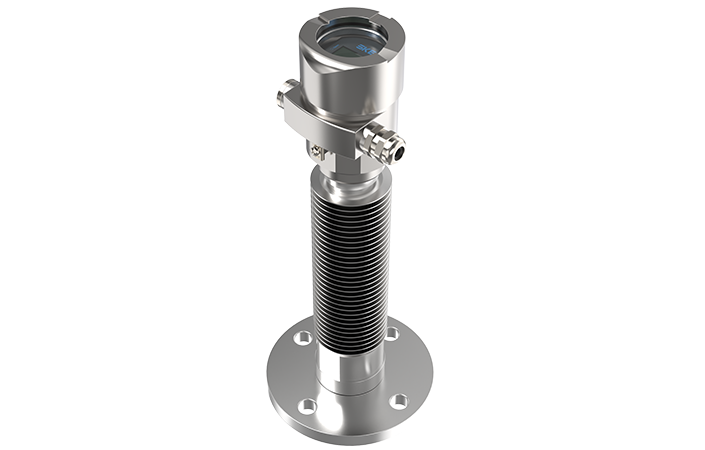

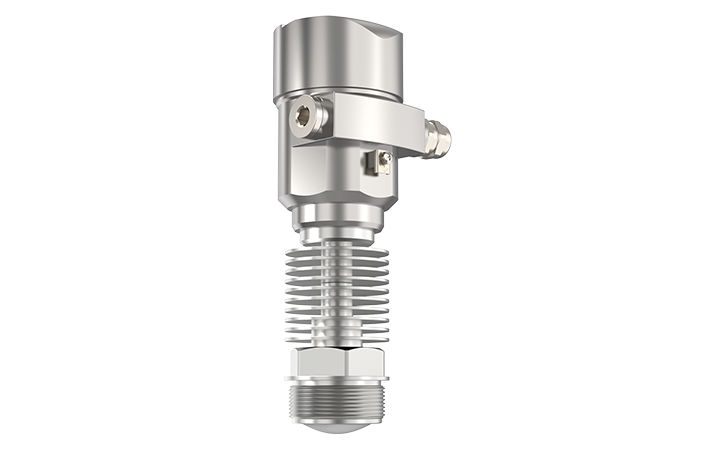

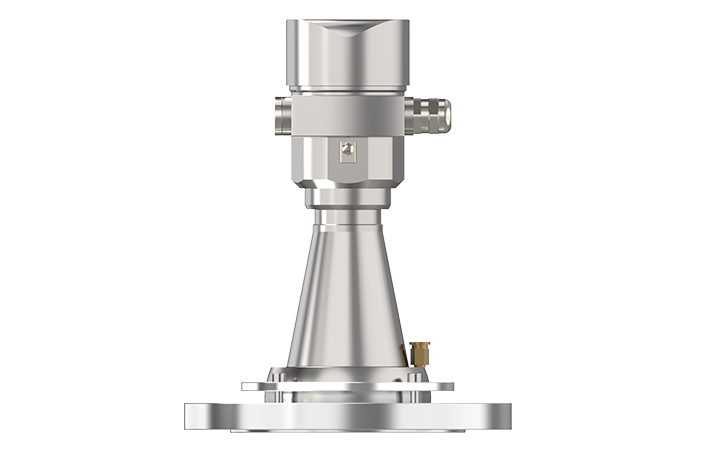

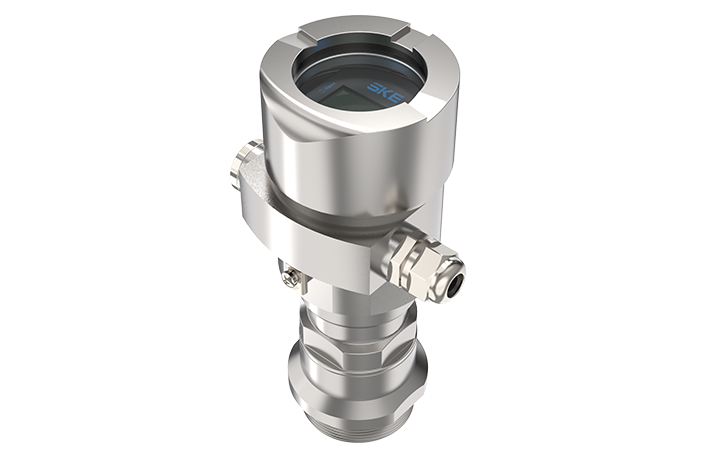

80GHz Radar Level Sensor(Bulk Solids) Transmitter

High accuracy, wide range, non-contact measurement.
80GHz radar level Sensor Transmitter, high measuring accuracy, wide range and non-contact measurement, can be widely used in material level and liquid level measurement of various highly corrosive and dusty media.
Material Level Measuring Radar Level Sensor radar level sensor for bulk solids radar level transmitter Radar Level Transmitter for Solids Level Measurement for Solids

  • Frequency modulation continuous wave (FMCW),  strong adaptability.
    Frequency modulation continuous wave (FMCW), strong adaptability.
    FMCW technology.
    Suitable for measuring liquids and bulk solids level.
    High penetration for high steam and high dust applications.
  • High precision
    High precision
    Beam angle 3°.
    Measurement accuracy up to ±2mm.
  • Easy to set up and debug
    Easy to set up and debug
    Simple commissioning, saves time, no need to fill or empty tanks.
    Simple setting , only need to set two parameters to realize the measurement.
    Multi-language support (including Chinese), echo display, easy for maintenance personnel to analyze and debug.
  • Support a variety of output signals
    Support a variety of output signals
    The measurement is not affected by changes in the medium, nor by process conditions such as temperature, pressure, dust, etc.
    Support 4-20mA, Hart, Modbus, etc.
  • 80GHz Radar Level Sensor(Bulk Solids) Transmitter
    Principle

        Frequency modulation continuous wave (FMCW) technology is adopted in the object level meter of 80GHz radar level transmitter. The continuous wave with frequency variation is transmitted within a certain period, and the echo reflected by the object has a certain frequency difference with the transmitted signal. The distance information between the target and the radar can be obtained by measuring the frequency difference.

        Radar level meter, as a new industrial level measuring instrument, has the characteristics of high-temperature resistance, high-pressure resistance, vacuum resistance, strong penetration, temperature, steam, dust, and other effects.


Application area

  • For tanks
    Mounting point needs to be from the above of tanks, and no direct barrier between the directly below and the highest liquid level of the liquid (transverse partitions, drain plates, columns, etc.). Both reaction kettle and storage tank with stirring can be measured.
  • For medium
    Various solids with a dielectric constant greater than 2
  • Ambient temperature
    -20℃~+70℃
  • Ambient humidity
    (0%~95%)RH
  • Explosion-proof
    ExdIICT6
  • Protection
    IP65、IP67
  • For tanks
    Mounting point needs to be from the above of tanks, and no direct barrier between the directly below and the highest liquid level of the liquid (transverse partitions, drain plates, columns, etc.). Both reaction kettle and storage tank with stirring can be measured.
  • For medium
    Various solids with a dielectric constant greater than 2
  • Ambient temperature
    -20℃~+70℃
  • Ambient humidity
    (0%~95%)RH
  • Explosion-proof
    ExdIICT6
  • Protection
    IP65、IP67

Technical parameters

  • Communication method
    Two-wire system
  • Measuring range
    10 m,20 m, 30 m, 60 m
  • Accuracy
    ±2 mm
  • Signal output
    (4~20)mA,HART,Modbus
  • Power supply
    DC 24V ( 22V~30V )
  • Ambient humidity
    (0%~95%)RH
  • Explosion-proof
    ExdIICT6
  • Protection for shell
    IP65,IP67
  • Display
    128x64 LCD
  • Electrical connection
    M20*1.5/1/2NPT
  • Weight
    1.2 KG
  • Size
    diameterϕ96mm×Height221mm
  • Hole diameter for host base
    G2/M68x2
