Wireless Remote Transmission Scheme for Liquid Level Measurement of Mobile Tanks
  • Wireless Remote Transmission Scheme for Liquid Level Measurement of Mobile Tanks
  • Wireless Remote Transmission Scheme for Liquid Level Measurement of Mobile Tanks
  • Wireless Remote Transmission Scheme for Liquid Level Measurement of Mobile Tanks
  • Wireless Remote Transmission Scheme for Liquid Level Measurement of Mobile Tanks
  • Wireless Remote Transmission Scheme for Liquid Level Measurement of Mobile Tanks

Wireless Remote Transmission Scheme for Liquid Level Measurement of Mobile Tanks

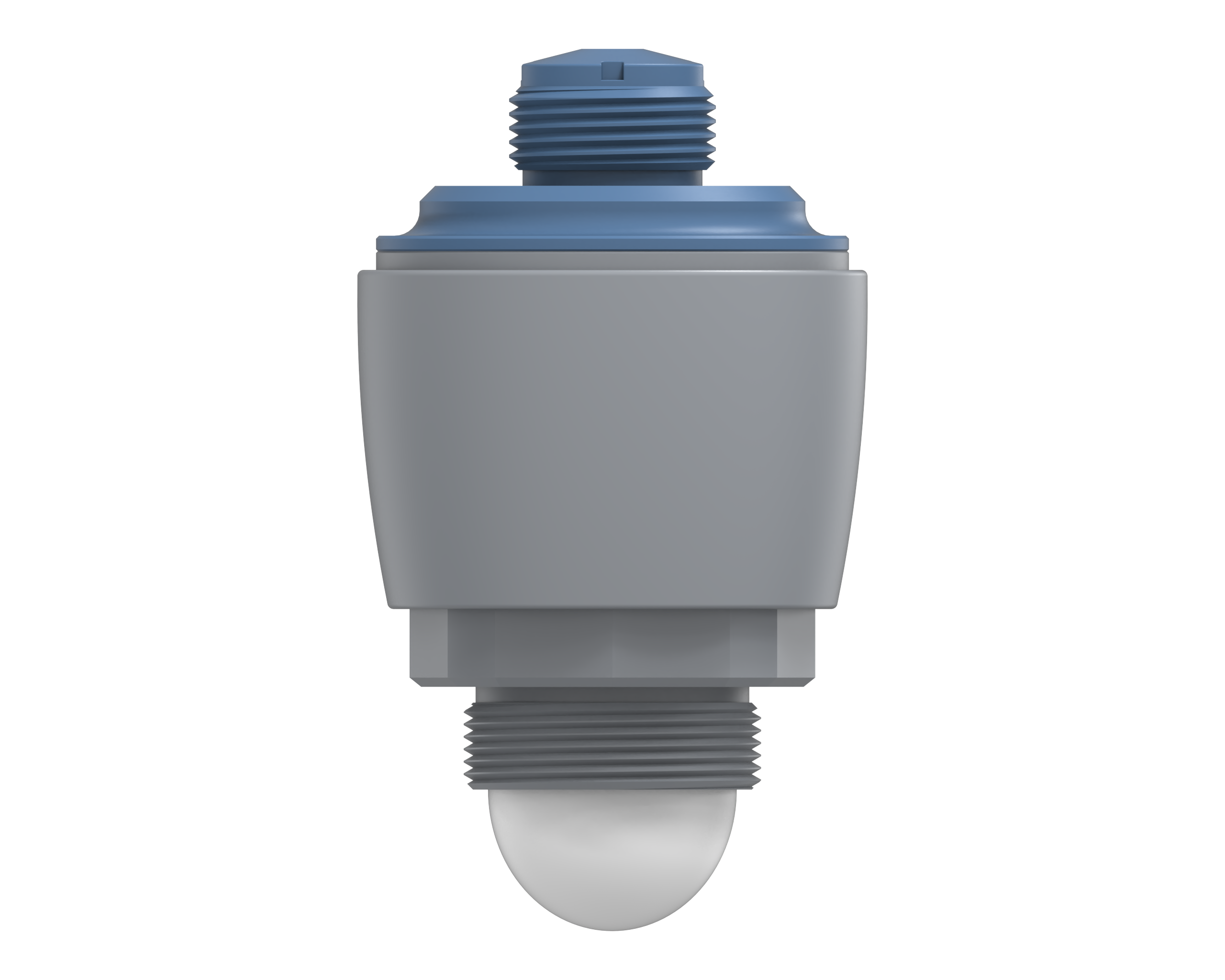

Non-invasive level sensor, radar level transmitter
This solution is suitable for mobile energy tank projects. It adopts non-invasive level sensor or radar level sensor, and cooperates with the positioning 4G transmission module to wirelessly transmit the fuel level signal of mobile fuel trucks to help customers monitor the fuel level of mobile fuel trucks in real time. This solution can reduce the risk of oil leakage during the driving of the tank truck, and avoid illegal acts such as oil theft and oil change, etc.

  • Non-contact Continuous Measurement
    Non-contact Continuous Measurement
    Real-time display of liquid level, curve chart, temperature and volume
  • 4G Transmission Module
    4G Transmission Module
    Positioning, 4G transmission module, the measured data transmission to the computer and mobile phone
  • Alarm Function
    Alarm Function
    Real-time liquid level abnormal alarm
  • Improve Transportation Efficiency
    Improve Transportation Efficiency
    Data storage, record measurement data, convenient data analysis and storage
    Real-time monitoring of driving trucks
  • Improve Management Efficiency
    Improve Management Efficiency
    Independent enterprise master account, can create sub-accounts and assign permissions
  • Power Supply
    Power Supply
    24V battery power supply (or car battery powered)
  • Wireless Remote Transmission Scheme for Liquid Level Measurement of Mobile Tanks
    Principle

    As shown in the figure, when measuring the liquid level, the sonar wave signal is emitted from the probeand the echo signal is detected by the probe after being reflected by the liquid surface.

    The echo signal is processed by a proprietary algorithm to calculate the time t,

    and the system calculates the liquid level height according to the formula.



    H : The height of the measured liquid level


    t : the time it takes for the sonar wave to return from launch to return


    tg : transit time of the sonar wave in the tank wall


    v : the velocity of sonar waves in the liquid


    α: Correction coefficient

Application area

Technical parameters

  • Measuring Range
    3m, 5m, 10m, 15m
  • Signal Output
    (4~20)mA, HART, RS485, Modbus
  • Housing Protection Level
    IP66, IP67
  • Explosion-proof
    ExdIICT6, ExdiaⅡCT6GB
