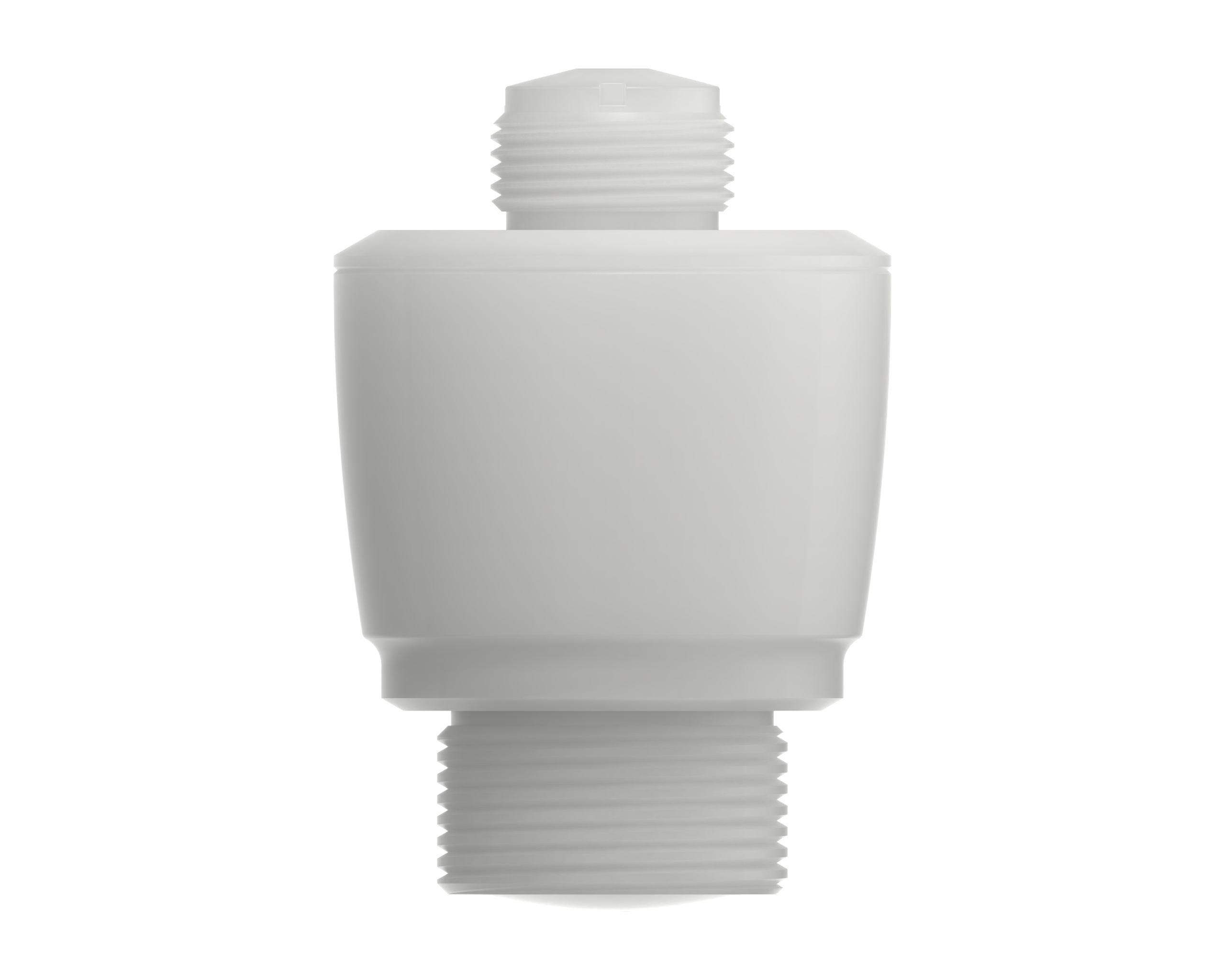

80GHz Radar Level Gauge with PP flange

non-contact level measurement radar level sensor with PP flange
The 80GHz radar level Sensor, high measuring accuracy, wide range and non-contact measurement, can be widely used in material level and liquid level measurement of various highly corrosive and dusty media.
80GHz radar level sensor non-contact level sensor high accuracy radar level sensor

  • Frequency Modulation Continuous Wave(FMCW), Strong Adaptability.
    Frequency Modulation Continuous Wave(FMCW), Strong Adaptability.
    FMCW technology.
    Suitable for measuring liquids and bulk solids level.
    High penetration for high steam and high dust applications.
  • High Precision
    High Precision
    Beam angle 3°.
    Measurement accuracy up to 1mm.
  • Easy to Set Up and Debug
    Easy to Set Up and Debug
    Simple commissioning, saves time, no need to fill or empty tanks.
    Simple setting , only need to set two parameters to realize the measurement.
    Multi-language support (including Chinese), echo display, easy for maintenance personnel to analyze and debug.
  • Support a Variety of Output Signals
    Support a Variety of Output Signals
    The measurement is not affected by changes in the medium, nor by process conditions such as temperature, pressure, dust, etc.
    Support 4~20mA、HART、Modbus , etc.
  • Not Affected by Environment
    Not Affected by Environment
    Not affected by temperature, pressure, dust and other process conditions.
  • 80GHz Radar Level Gauge with PP flange
    Principle

        Frequency modulation continuous wave (FMCW) technology is adopted in the object level meter of 80GHz radar level transmitter. The continuous wave with frequency variation is transmitted within a certain period, and the echo reflected by the object has a certain frequency difference with the transmitted signal. The distance information between the target and the radar can be obtained by measuring the frequency difference.

        Radar level meter, as a new industrial level measuring instrument, has the characteristics of high-temperature resistance, high-pressure resistance, vacuum resistance, strong penetration, temperature, steam, dust, and other effects.



Application area

  • For tanks
    Mounting point needs to be from the above of tanks, and no direct barrier between the directly below and the highest liquid level of the liquid (transverse partitions, drain plates, columns, etc.). Both reaction kettle and storage tank with stirring can be measured.
  • For medium
    Solids, granules, powders and other solids
    Strong acid, strong alkali, and other liquids
  • Ambient temperature
    -40℃~200℃
  • Working pressure
    -1~16bar
  • Environment humidity
    (0%~95%)RH
  • Protection level
    IP67
  • Explosion-proof mark
    ExdIICT6
  • For tanks
    Mounting point needs to be from the above of tanks, and no direct barrier between the directly below and the highest liquid level of the liquid (transverse partitions, drain plates, columns, etc.). Both reaction kettle and storage tank with stirring can be measured.
  • For medium
    Solids, granules, powders and other solids
    Strong acid, strong alkali, and other liquids
  • Ambient temperature
    -40℃~200℃
  • Working pressure
    -1~16bar
  • Environment humidity
    (0%~95%)RH
  • Protection level
    IP67
  • Explosion-proof mark
    ExdIICT6

Technical parameters

  • Communication method
    Two-wire system
  • Measuring range
    10 m,20 m, 30 m, 60 m
  • Measuring error
    ±2 mm
  • Migration
    ±9.9 mm
  • Signal output
    4~20mA、HART、Modbus
  • Power supply
    DC 24V ( 22V~30V )
  • Ambient temperature
    -20℃~+70℃
  • Environment humidity
    (0%~95%)RH
  • Explosion-proof mark
    ExdiaⅡCT6 GB
  • Protection level
    IP66
  • Frequency
    77GHz-81GHz
  • Display
    128×64 LCD
  • Electrical connector
    M20×1.5(F)

Documentation

Name Format Time File size Download
